BookDrive Capture

Atiz

The one software to control all the cameras

Press one button to scan both left and right pages and have the images rendered on screen immediately. You can capture as fast as 800 pages per hour.

In-Software Camera Status and Settings

Vital information such as camera battery status is displayed on the screen. Most camera settings such as shutter speed, aperture adjustments can be configured right within the software with just a click.

Smart Preview

Atiz Book Drive Capture Smart Preview

Resume Unfinished Book

Go back to right where you left off to continue and finish the book. All the settings and files of the previous job will come back alive.

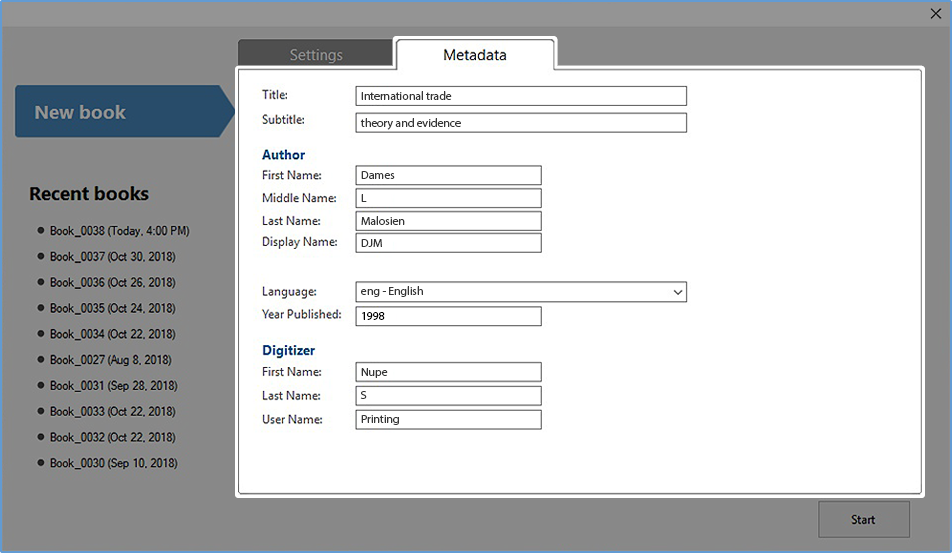

Metadata

The metadata of the books such as title, author’s name and year published can be recorded in a standard compliant XML file for future use in search and record keeping.

Instant Crop

After images are shot, you can decide to crop them right away in BookDrive Capture software. This functionality is handy if you are not interested in post image processing. There is also a keyboard shortcut for “crop and shoot” so that the cameras proceed

Time Lapse

Turn on the Timed Lapse mode and the cameras will be triggered to fire automatically at every pre-defined intervals between 1-10 seconds, requiring you to simply flick through the pages. No button pressing.

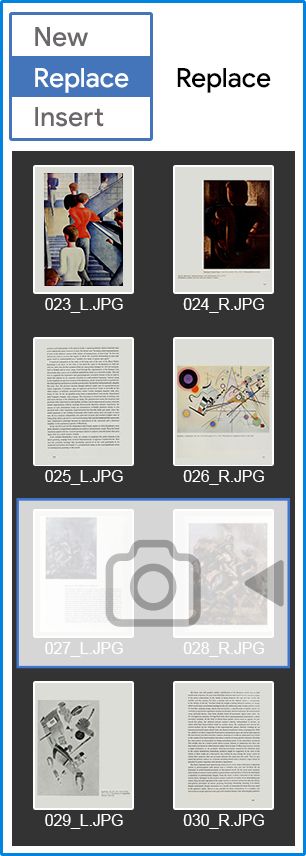

Easy insert and replace

Don’t sweat if you’ve skipped some pages. The program will let you go back to insert missing pages or replace the bad shots with better ones. You don’t have to worry about its location and file name. The software will take care all of that for you (properly naming and renaming all the effected files).

Complete Feature List

Dual Camera Control

In-software camera status and settings
Live View
Support Canon EOS DSLRs
Support Rn
gle side (left or right)
Capture double sides (both left and right)

Fast Capture & Instant Edit

Time lapse
Auto Capture Switch
Easily insert, replace or delete images anywhere
Option to batch re-index filename
Instant rotate, crop, resize, DPI adjustment
Instant export to TIFF, PDF, or PDF/A

Manage

Multi-language support
Metadata and tags
Option to retain EXIF information
Ability to resume recent books
Support Western and East Asian page sequence

Smart preview
Magnifying area

Requirements

Recommended Requirements

OS: Windows 10
CPU: Intel Core i5 or i7
Memory: 8GB or more
Hard disk type: SSD for faster read/write speed
Hard disk space: 50GB or more available
Interface: USB 3.0
User must have Microsoft.NET Framework 3.5 or higher installed
Requires USB dongle (included with BookDrive Capture software)

Minimum Requirements

OS: Windows 10, 8, 7
CPU: Intel Core i3 or better
Memory: 4GB or more
Hard disk type: HDD or SSD
Hard disk space: 30GB or more available
Interface: USB 2.0
User must have Microsoft.NET Framework 3.5 or higher installed
Requires USB dongle (included with BookDrive Capture software)

List of supported cameras

Model Name	Year release	Tethered Shooting	Built-in Camera Settings	Live View	Megapixels	Resolution	DPI
Model Name	Year release	Tethered Shooting	Built-in Camera Settings	Live View	Megapixels	Resolution	A4	A3	A2
Full Frame
EOS R5 new mirrorless	2020	✔	✔	✔	45 MP	8192 x 5464	661	467	331
EOS Rp new mirrorless	2019	✔	✔	✔	26.2 MP	6240 x 4160	503	356	252
6D Mark II	2019	✔	✔	✔	26.2 MP	6240 x 4160	503	356	252
5D Mark IV	2016	✔	✔	✔	30.4 MP	6720 x 4480	542	383	272
5DS R highest resolution	2015	✔	✔	✔	50 MP	8688 x 5792	700	495	351
5D Mark III	2012	✔	✔	✔	22 MP	5760 x 3860	467	330	234
6D	2012	✔	✔	✔	20 MP	5472 x 3648	441	312	221
5D Mark II	2008	✔	✔	✔	21 MP	5616 x 3744	453	320	227
Crop Frame
850D (Rebel T8i) new	2020	✔	✔	✔	24 MP	6000 x 4000	484	342	242
90D new	2019	✔	✔	✔	32.5 MP	6960 x 4640	561	397	281
200D Mark II (Rebel SL3) new	2019	✔	✔	✔	24 MP	6000 x 4000	484	342	242
1500D (Rebel T7) entry level	2018	✔	✔	✔	24 MP	6000 x 4000	484	342	242
4000D (REBEL T100)	2018	✔	✔	✔	18 MP	5184 x 3456	418	295	209
2000D (REBEL T7, Kiss X90)	2018	✔	✔	✔	18 MP	5184 x 3456	418	295	209
800D (Rebel T7i, Kiss X9i)	2017	✔	✔	✔	24 MP	6000 x 4000	484	342	242
77D / 9000D	2017	✔	✔	✔	24 MP	6000 x 4000	484	342	242
1DX Mark II	2016	✔	✔	✔	16.6 MP	4992 x 3328	402	284	202
80D	2016	✔	✔	✔	24 MP	6000 x 4000	484	342	242
1300D (REBEL T6, Kiss X80)	2016	✔	✔	✔	18 MP	5184 x 3456	418	295	209
760D (REBEL T6s)	2015	✔	✔	✔	24 MP	6000 x 4000	484	342	242
750D (REBEL T6i, Kiss X8i)	2015	✔	✔	✔	24 MP	6000 x 4000	484	342	242
1200D (REBEL T5, Kiss X70)	2014	✔	✔	✔	18 MP	5184 x 3456	418	295	209
7D Mark II	2014	✔	✔	✔	20 MP	5472 x 3648	441	312	221
700D (REBEL T5i)	2013	✔	✔	✔	18 MP	5184 x 3456	418	295	209
70D	2013	✔	✔	✔	20 MP	5472 x 3648	441	312	221
100D (REBEL SL1, Kiss X7)	2013	✔	✔	✔	18 MP	5184 x 3456	418	295	209
1DC	2013	✔	✔	✔	18 MP	5184 x 3456	418	295	209
1DX	2012	✔	✔	✔	18 MP	5184 x 3456	418	295	209
650D (REBEL T4i, Kiss X6i)	2012	✔	✔	✔	18 MP	5184 x 3456	418	295	209
600D (REBEL T3i, Kiss X5)	2011	✔	✔	✔	18 MP	5184 x 3456	418	295	209
60D	2010	✔	✔	✔	18 MP	5184 x 3456	418	295	209
550D (REBEL T2i, Kiss X4)	2010	✔	✔	✔	18 MP	5184 x 3456	418	295	209
500D (REBEL T1i, Kiss X3)	2009	✔	✔	✔	15 MP	4752 x 3168	383	271	192
1D Mark IV	2009	✔	✔	✔	16.1 MP	4896 x 3264	395	279	198
50D	2008	✔	✔	✔	15 MP	4752 x 3168	383	271	192
450D (REBEL Xsi, Kiss X2)	2008	✔	✔	✔	12 MP	4272 x 2848	344	243	173
1D Mark II	2004	✔	✔	✔	16.6 MP	4992 x 3328	402	284	202
1Ds Mark II	2004	✔	✔	✔	16.6 MP	4992 x 3328	402	284	202
